Electronic Ballasts
- AC Source: 198~264V
- Mains Frequency: 50/60Hz
- Power Factor: >0.5typ.
- Efficiency: >90% typ.
- Operating Frequency: 30-40KHz
- Dimensions: 85*43*27 mm
- Disconnect Input Power Before Installing or Servicing
- Don’t short any two wires of the input and output wires Ballast Case Must Be Grounded

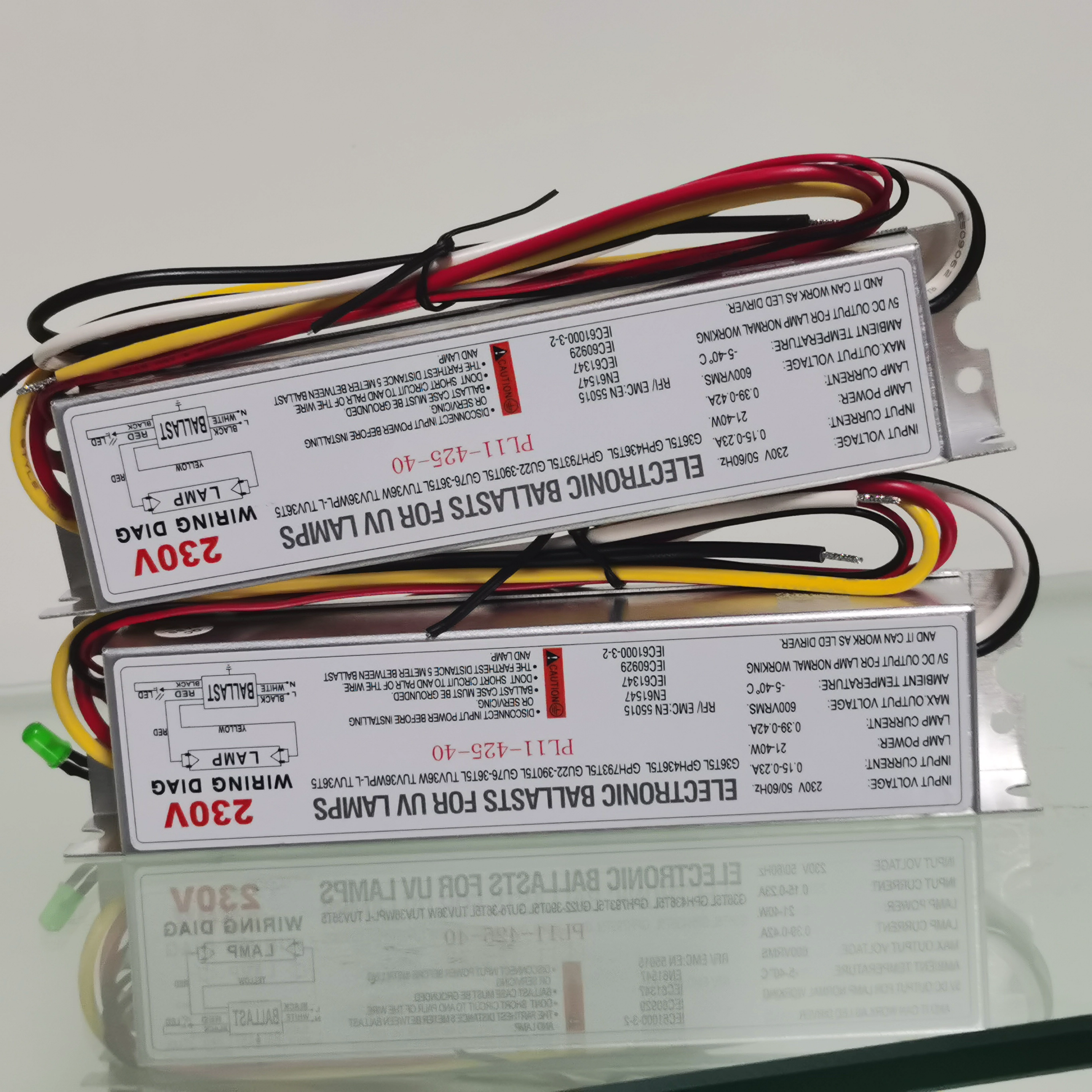

Exporter From China Electronic Ballast Equal To Philips Electronic ballast PW12-425-18 UV Electronic Ballasts
AC Source: 198~264V
Mains Frequency: 50/60Hz
Power Factor: >0.5typ.
Efficiency: >90% typ.
Operating Frequency: 30-40KHz
Dimensions: 85*43*27 mm
Disconnect Input Power Before Installing or Servicing
Don’t short any two wires of the input and output wires Ballast Case Must Be Grounded
| Type | PW12-425-18W |
| Input power( W) | 10-18W |
| Input Current( A) | Max.0.35-230 |
| Power /lamp(W) | 1*10-18 |
| Current(A) | 0.35-0.42 |
| Weight(KG | 0.25 |
| Packing (CM) | 35.2*21.8*29.3 |
| Quantity | 40PCS /Carton |
Installation Requirement
IF=5-20mA
Max. cable length between the ballast and the lamp: 1.5m
Mounting Restrictions (For indoor use only)
Disconnect Input Power Before Installing or Servicing
Don’t short any two wires of the input and output wires Ballast Case Must Be Grounded
